Old Kit Review – Talking Electronics Fluorescent Simulator

Introduction

Slowly we’re working through the stock of old kits, and in this article we have the “Fluorescent Lamp” simulator from Talking Electronics. To save repeating myself you can read more about Talking Electronics here and watch interviews of the founder Colin Mitchell here.

So why would you want to simulate a fluoro’ tube anyway? Model railways! When your model world moves from day to night, it’s neat to have street lights and so on “flicker” on just like the real thing. And thus you can create this effect as well. It can drive incandescent lamps up to 12V, and allowing it to be powered easily from most layouts.

The kit was originally described in the Talking Electronics book “Electronics for Model Railways” (volume 1) which was full of useful and interesting electronics to liven up any layout. The book may now out of print however at the time of writing this you can download or view most of the projects from the index column of the Talking Electronics website… or contact Talking Electronics if they have any copies of the book (or kit) to sell.

Assembly

Time was not kind to the kit, to be frank it was surprising to find one at all:

(Just a note for any over-enthusiastic readers, Talking Electronics is no longer at the address on the bag shown above). However it was complete and ready for assembly. The PCB has a silk-screen with the required component placement information, polarities and so on – a first for the time:

The instructions and “how it works” are not included with the kit as you were meant to have the book, however TE have made them available as a separate download (.pdf) The kit included everything required to get started, and there’s an LED which replicates the effect so you can test the board without having to watch the connected bulb (which may be a distance away). Finally an IC socket is included

The actual assembly process was very straight forward, which simply required starting with the low-profile components and working up to the large ones:

The only problem with the PCB was the holes – looks like only one drill size had been used (apart from the mounting holes) which made getting that rectifier diode in a little tricky. Otherwise it was smooth sailing.

Not having a model railway at the moment left me with the simple example of the onboard LED and a small incandescent globe to try with the circuit. You can see the kit working in this video.

John – Why do you publish these “Old Kit Reviews”?

They’re more of  a selfish article, like many electronics enthusiasts I have enjoyed kits for decades – and finding kits from days gone by is a treat. From various feedback some of you are enjoying them, so they will continue for fun and some nostalgia. If you’re not interested, just ignore the posts starting with “Old”!

Conclusion

For a kit from the mid-1980s, this would have solved the problem neatly for model railway enthusiasts. By using two or more of the kits with different capacitor values, many model lights could blink on with seemingly random patterns. However it’s 2014 so you could use a PIC10F200 or ATtiny45 and reduce the board space and increase the blinking potential.

Nevertheless, it was an interesting example of what’s possible with a digital logic IC. Full-sized images and a lot more information about the kit are available on flickr. And if you enjoyed this article, or want to introduce someone else to the interesting world of Arduino – check out my book (now in a third printing!) “Arduino Workshop”.

Have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column, or join our forum – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Old Kit Review – Talking Electronics Fluorescent Simulator appeared first on tronixstuff.

Old Kit Review – Silicon Chip Transistor Beta Tester

Introduction

After exploring a quiet , dusty electronics store in the depths of suburbia the other week, I came across this kit from Altronics (K2534) which is the subject of this review. The Transistor Beta tester is the second revision of a tester designed by John Clarke for the March 1991 issue of Silicon Chip magazine, and promises to offer a simple way of measuring the gain of almost any NPN or PNP bipolar transistor. But first some public answers to recent feedback…

John – Why do you publish these “Old Kit Reviews”?

They’re more of  a selfish article, like many electronics enthusiasts I’ve enjoyed kits for decades – and finding kits from days gone by is a treat. From various feedback some of you are enjoying them, so I’ll continue with them for fun and some nostalgia. If you’re not interested, just ignore the posts starting with “Old”!

Where’s the schematic?

After publishing a few kit reviews, people have been asking me for the schematics. For kits that are based on magazine articles from Silicon Chip and the like, the details are Copyright and I can’t legitimately give you a copy. You need to contact the magazine or kit supplier. The surviving electronics magazines often run “on the smell of an oily rag” so in order to support them I promote the idea of paying for copies which are obtainable from the magazine. Plus Australia is a small country, where people in this industry know each other through first or second connections – so I don’t want to annoy the wrong people. However Google is an awesome tool,  and if you want to make your own beta tester there are many example circuits to be found – so have fun.

Back to the review – what is “beta”?

Apart from a letter of the Greek alphabet and a totally-underrated form of VCR format, beta is a term used to define the amount of gain of a transistor. From the guide:

Assembly

Here’s our kit from 1991, rescued from the darkness of the store:

Which contained the nice box, plus all the required components except for an IC socket, and a few screws and mounting nuts that should have been included. The instructions looked to be a photocopy of a photocopy, harking back to the 1980s…

Looks like an off-brand 555 has been used (or substituted), however a bit of research indicated that it is most likely from LG Semiconductor:

The PCB was made to the usual standard at the time, just drilled:

The front panel was well done, and kindly pre-drilled by a previous customer. The kit came with a 3mm LED however this mystery person had drilled the hole out for a 5mm:

… but hadn’t cut the oblong for the slide switch wide enough. But the biggest problem was that the PCB was just a smidge too wide for the included enclosure:

Nevertheless it was time to get started, and the resistors were measured, lined up and fitted:

Then the rest of the components fitted as normal, however they need to stay below the horizontal level of the slide switch bezel:

… which was somewhat successful. Then to fit the potentiometer, battery snap …

and the test leads:

 And we’re finished:

How it works

Operation is quite simple, just wire up the test leads to the transistor’s base, collector and emitter – set the PNP/NPN switch and press test. Then you turn the knob until the LED just turns on – at which point the scale indicates the gain.

“Modern-day” replacements

Digital technology has taken over with this regard, and a device such as the one below can not only give the gain, but also the component details, identify legs, and much more:

I’ll be sticking with this one for the time being. Jaycar have discontinued the analyser shown above, but Altronics have the “Peak” unit which looks even more useful.

Conclusion

Well… that was fun. A lot of promise, however with a few details not taken care of the kit was just a bit off. Considering this was around twenty years old and possibly shop-soiled I can’t complain. For the record the good people at Altronics have a great line of kits. Full-sized images and a lot more information about the kit are available on flickr.

And while you’re here – are you interested in Arduino? Check out my new book “Arduino Workshop” from No Starch Press.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Old Kit Review – Silicon Chip Transistor Beta Tester appeared first on tronixstuff.

Tronixstuff 15 Dec 04:15

Kit Review – Jaycar “Short Circuits” 3 Digit Counter

Introduction

Time for another kit review and in this instalment we have a look at the “3 digit counter” kit from Jaycar. This is part of a much larger series of kits that are described in a three volume set of educational books from Jaycar titled “Short Circuits”.

Aimed at the younger readers or anyone who has an interest in learning electronics, these books (volumes one, two and three) are well written and with some study and practice the reader will make a large variety of projects and learn quite a bit. They could be considered as a worthy 21st-century replacement to the old Dick Smith “Funway…” guides.

The purpose of this kit is to give you a device which can count upwards between zero and 999 – which can be used for various purposes and also of course to learn about digital electronics.

Assembly

The kit arrives in typical retail fashion:

Everything you need to make the counter is included except for the instructions – which are found in the “Short Circuits” volume two book – and IC sockets. Kits for beginners with should come with IC sockets.

The components are separated neatly in the bag above, and it was interesting to see the use of zero ohm resistors for the two links on the board:

The PCB is excellent. The silk screening and solder-mask is very well done.

Furthermore I was really, really impressed with the level of detail with the drilling. The designer has allowed for components with different pin spacing – for example the 100 nF capacitor and transistors as shown below:

The instructions in the book are very clear and are written in an approachable fashion:

There’s also a detailed explanation on how the circuit works, some interesting BCD to decimal notes, examples of use (slot cars!) and a neat diagram showing how to mount the kit in a box using various parts from Jaycar – so you’re not left on your own.

Construction went well, starting with the low-profile parts:

… then the semiconductors:

… then the higher-profile parts and we’re finished:

There wasn’t any difficulty at all, and the counter worked first time. Although I’m not a new user, the quality of PCB and instructions would have been a contributing factor to the success of the kit.

How it works

The input signal for the counter (in this case a button controlling current from the supply rail) is “squared-up” by an MC14093 schmitt-trigger IC, which then feeds a MC14553 BCD counter IC, which counts and then feeds the results to a 4511 BCD to 7-segment converter to drive the LED digits which are multiplexed by the MC14553. For the schematic and details please refer to the book. Operation is simple, and demonstrated in the following video:

However you can feed the counter an external signal, by simply applying it to the input section of the circuit. After a quick modification:

… it was ready to be connected to a function generator. In the following video we send pulses with a varying frequency up to 2 kHz:

Conclusion

This is a neat kit, works well and with the accompanying book makes a good explanation of a popular digital electronics subject. There aren’t many good “electronics for beginners” books on the market any more, howevert the “Short Circuits” range from Jaycar really fit the bill.

So if you’re looking to learn more about electronics or start someone else off, head in to Jaycar and have a look. Readers from outside Australia are also covered. Full-sized images are available on flickr.

And while you’re here – are you interested in Arduino? Check out my new book “Arduino Workshop” from No Starch Press.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

[Note – kit and book purchased without notifying the supplier]

The post Kit Review – Jaycar “Short Circuits” 3 Digit Counter appeared first on tronixstuff.

Tronixstuff 04 Dec 22:00

My first impression on Cogwheel Nixie clock

Many months ago I bought, attracted by the clearance price, the PCB for the "Nixie Driver Board Rev A" from "Cogwheel circuit works" store. I was hoping that, with all documentation in place, I would be able to build it on my own, considering it's controlled by an ATmega328 and the software was available, though not the source code.

First thing to note is that the board uses mostly SMDs. If anything went wrong (and there was a high chance, since the PCB was already described as a "mistake the board house made"), the board would become a coaster.

The schematic includes some exotic components, like the HV513 Nixie driver, not offered by digikey. Others are the DS1302 RTC and the optional DS32KHZ oscillator for RTC, which I heard of for the first time. But thanks to the detailed BOM, gathering the components was relatively (some of them are already discontinued, for example) easy.

High voltage for the Nixie tubes is generated by a hardware PWM under software control. So, like the Ice Tube Clock, in order to measure the high voltage and make sure the HV circuitry works, some software must be uploaded onto the processor. I expected the released software to do that. Unfortunately, the highest voltage I saw was under 9V.




After some digging (and learning in the process), I ended up with this simple sketch, adapted from Satashnik Nixie clock, which generates a stable 190V. I know, I was surprised too :)

#include "Arduino.h"

#define DDRHVPUMP  DDRB
#define BV2(a,b) (_BV(a)|_BV(b))
#define BV6(a,b,c,d,e,f) (_BV(a)|_BV(b)|_BV(c)|_BV(d)|_BV(e)|_BV(f))
#define VOLTAGE_WASTE   370                     //!< ~180V
#define VOLTAGE_SAVE    355                     //!< ~170V

volatile uint16_t voltage;
static volatile uint16_t voltage_setpoint = VOLTAGE_WASTE;
static const uint16_t ocr1a_reload = 60;

void pump_init()
{
    // set fast pwm mode
    // COM1A1:0 = 10, clear oc1a on compare match, set at top
    // COM1B1:0 = 00, normal port operation
    // no FOC
    // WGM11:10 (WGM = Fast PWM, TOP=ICR1: 1110) = 11
    TCCR1A = BV2(COM1A1, WGM11);
    TCCR1B = BV2(WGM13,  WGM12);
    OCR1A = ocr1a_reload;
    ICR1 = 170;
    TCCR1B |= _BV(CS10); // clk/1 (16MHz)
    DDRHVPUMP |= BV2(1,2);
}

void adc_init()
{
    voltage = 0;
    // PORTA.6 is the feedback input, AREF = AREF pin
    ADMUX = 6;
    // ADC enable, autotrigger, interrupt enable, prescaler = 111 (divide by 32)
    ADCSRA = BV6(ADEN, ADATE, ADIE, ADPS2, ADPS1, ADPS0);
    ADCSRA |= _BV(ADSC);
}

/// Start voltage booster
void voltage_start()
{
    adc_init();
    pump_init();
}

ISR(ADC_vect)
{
    voltage = (voltage + ADC) / 2;
    if (voltage < voltage_setpoint) {
        OCR1A = ocr1a_reload;
    } else {
        OCR1A = 0;
    }
}

void setup()
{
    sei();
    voltage_start();        // start HV generation
}

void loop()
{
  // clock functionality in here;
}

The next big step is to write the software to drive the tubes and actually show the time, which is essentially re-writing the Cogwheel Nixie clock code (or at least the basic functionality) from scratch. Then open source it. Any help would be appreciated :)

Tutorial – Send email with the Arduino Yún

Introduction

This is the third in a series of tutorials examining various uses of the Arduino Yún. In this article we’ll examine how your Arduino Yún can send email from a Google email account. Doing so gives you a neat and simple method of sending data captured by the Arduino Yún or other notifications.

Getting Started

If you haven’t already done so, ensure your Arduino Yún can connect to your network via WiFi or cable – and get a Temboo account (we run through this here). And you need (at the time of writing) IDE version 1.5.4 which can be downloaded from the Arduino website.

Finally, you will need a Google account to send email from, so if you don’t have one – sign up here. You might want to give your Arduino Yún an email address of its very own.

Testing the Arduino Yún-Gmail connection

In this first example we’ll run through the sketch provided by Temboo so you can confirm everything works as it should. This will send a simple email from your Arduino Yún to another email address. First, copy the following sketch into the IDE but don’t upload it yet:

/*
  SendAnEmail

  Demonstrates sending an email via a Google Gmail account using the Temboo Arduino Yun SDK.

  This example code is in the public domain.
*/

#include <Bridge.h>
#include <Temboo.h>
#include "TembooAccount.h" // contains Temboo account information

/*** SUBSTITUTE YOUR VALUES BELOW: ***/

// Note that for additional security and reusability, you could
// use #define statements to specify these values in a .h file.

// your Gmail username, formatted as a complete email address, eg "bob.smith@gmail.com"
const String GMAIL_USER_NAME = "sender@gmail.com";

// your Gmail password
const String GMAIL_PASSWORD = "gmailpassword";

// the email address you want to send the email to, eg "jane.doe@temboo.com"
const String TO_EMAIL_ADDRESS = "recipient@email.com";

boolean success = false; // a flag to indicate whether we've sent the email yet or not

void setup() {
  Serial.begin(9600);

  // for debugging, wait until a serial console is connected
  delay(4000);
  while(!Serial);

  Bridge.begin();
}

void loop()
{
  // only try to send the email if we haven't already sent it successfully
  if (!success) {

    Serial.println("Running SendAnEmail...");

    TembooChoreo SendEmailChoreo;

    // invoke the Temboo client
    // NOTE that the client must be reinvoked, and repopulated with
    // appropriate arguments, each time its run() method is called.
    SendEmailChoreo.begin();

    // set Temboo account credentials
    SendEmailChoreo.setAccountName(TEMBOO_ACCOUNT);
    SendEmailChoreo.setAppKeyName(TEMBOO_APP_KEY_NAME);
    SendEmailChoreo.setAppKey(TEMBOO_APP_KEY);

    // identify the Temboo Library choreo to run (Google > Gmail > SendEmail)
    SendEmailChoreo.setChoreo("/Library/Google/Gmail/SendEmail");

    // set the required choreo inputs
    // see https://www.temboo.com/library/Library/Google/Gmail/SendEmail/
    // for complete details about the inputs for this Choreo

    // the first input is your Gmail email address
    SendEmailChoreo.addInput("Username", GMAIL_USER_NAME);
    // next is your Gmail password.
    SendEmailChoreo.addInput("Password", GMAIL_PASSWORD);
    // who to send the email to
    SendEmailChoreo.addInput("ToAddress", TO_EMAIL_ADDRESS);
    // then a subject line
    SendEmailChoreo.addInput("Subject", "Email subject line here");

     // next comes the message body, the main content of the email
    SendEmailChoreo.addInput("MessageBody", "Email content");

    // tell the Choreo to run and wait for the results. The
    // return code (returnCode) will tell us whether the Temboo client
    // was able to send our request to the Temboo servers
    unsigned int returnCode = SendEmailChoreo.run();

    // a return code of zero (0) means everything worked
    if (returnCode == 0) {
        Serial.println("Success! Email sent!");
        success = true;
    } else {
      // a non-zero return code means there was an error
      // read and print the error message
      while (SendEmailChoreo.available()) {
        char c = SendEmailChoreo.read();
        Serial.print(c);
      }
    }
    SendEmailChoreo.close();

    // do nothing for the next 60 seconds
    delay(60000);
  }
}

Before uploading you need to enter five parameters – the email address to send the email with, the password for that account, the recipient’s email address, and the email’s subject line and content. These can be found in the following lines in the sketch – for example:

const String GMAIL_USER_NAME = "sender@gmail.com";
const String GMAIL_PASSWORD = "emailpassword";
const String TO_EMAIL_ADDRESS = "recipient@email.com";
SendEmailChoreo.addInput("Subject", "This is the subject line of the email");
SendEmailChoreo.addInput("MessageBody", "And this is the content of the email");

So enter the required data in the fields above. If you’re sending from a Google Apps account instead of a Gmail account – that’s ok, just enter in the sending email address as normal. Temboo and Google will take care of the rest.

Finally, create your header file by copying the the header file data from here (after logging to Temboo) into a text file and saving it with the name TembooAccount.h in the same folder as your sketch from above. You know this has been successful when opening the sketch, as you will see the header file in a second tab, for example:

Now you can upload the sketch, and after a few moments check the recipient’s email account. If all goes well you will be informed by the IDE serial monitor as well (if your Yún is connected via USB). It’s satisfying to see an email come from your Arduino Yún, for example in this short video.

If your email is not coming through, connect your Arduino Yún via USB (if not already done so) and open the serial monitor. It will let you know if there’s a problem in relatively plain English – for example:

Error
A Step Error has occurred: “An SMTP error has occurred. Make sure that your credentials are correct and that you’ve provided a fully qualified Gmail
username (e.g., john.smith@gmail.com) for the Username input. When using Google 2-Step Verification, make sure to
provide an application-specific password. If this problem persists, Google may be restricting access to your account, and you’ll need to
explicitly allow access via gmail.com.”. The error occurred in the Stop (Authentication error) step.
HTTP_CODE
500


So if this happens, check your email account details in the sketch, and try again.

Sending email with customisable subject and content data

The example sketch above is fine if you want to send a fixed message. However what if you need to send some data? That can be easily done. For our example we’ll generate some random numbers, and integrate them into the email subject line and content. This will give you the framework to add your own sensor data to emails from your Arduino Yún. Consider the following sketch:

/*
  SendAnEmail

  Demonstrates sending an email via a Google Gmail account using the Temboo Arduino Yun SDK.

  This example code is in the public domain.
*/

#include <Bridge.h>
#include <Temboo.h>
#include "TembooAccount.h" // contains Temboo account information

/*** SUBSTITUTE YOUR VALUES BELOW: ***/

// Note that for additional security and reusability, you could
// use #define statements to specify these values in a .h file.

// your Gmail username, formatted as a complete email address, eg "bob.smith@gmail.com"
const String GMAIL_USER_NAME = "sender@gmail.com";

// your Gmail password
const String GMAIL_PASSWORD = "gmailpassword";

// the email address you want to send the email to, eg "jane.doe@temboo.com"
const String TO_EMAIL_ADDRESS = "recipient@email.com";

int a,b; // used to store our random numbers
boolean success = false; // a flag to indicate whether we've sent the email yet or not

void setup()
{
  Serial.begin(9600);
  // for debugging, wait until a serial console is connected
  delay(4000);
  while(!Serial);
  Bridge.begin();
  randomSeed(analogRead(0)); // fire up random number generation
}

void loop()
{
  // generate some random numbers to send in the email
  a = random(1000);
  b = random(1000);
  // compose email subject line into a String called "emailSubject"
  String emailSubject("The random value of a is: ");
  emailSubject += a;
  emailSubject += " and b is: ";
  emailSubject += b;
  // compose email content into a String called "emailContent"
  String emailContent("This is an automated email from your Arduino Yun. The random value of a is: ");
  emailContent += a;
  emailContent += " and b is: ";
  emailContent += b;
  emailContent += ". I hope that was of some use for you. Bye for now.";

  // only try to send the email if we haven't already sent it successfully
  if (!success) {

    Serial.println("Running SendAnEmail...");

    TembooChoreo SendEmailChoreo;

    // invoke the Temboo client
    // NOTE that the client must be reinvoked, and repopulated with
    // appropriate arguments, each time its run() method is called.
    SendEmailChoreo.begin();

    // set Temboo account credentials
    SendEmailChoreo.setAccountName(TEMBOO_ACCOUNT);
    SendEmailChoreo.setAppKeyName(TEMBOO_APP_KEY_NAME);
    SendEmailChoreo.setAppKey(TEMBOO_APP_KEY);

    // identify the Temboo Library choreo to run (Google > Gmail > SendEmail)
    SendEmailChoreo.setChoreo("/Library/Google/Gmail/SendEmail");

    // set the required choreo inputs
    // see https://www.temboo.com/library/Library/Google/Gmail/SendEmail/
    // for complete details about the inputs for this Choreo

    // the first input is your Gmail email address
    SendEmailChoreo.addInput("Username", GMAIL_USER_NAME);
    // next is your Gmail password.
    SendEmailChoreo.addInput("Password", GMAIL_PASSWORD);
    // who to send the email to
    SendEmailChoreo.addInput("ToAddress", TO_EMAIL_ADDRESS);
    // then a subject line
    SendEmailChoreo.addInput("Subject", emailSubject); // here we send the emailSubject string as the email subject

     // next comes the message body, the main content of the email
    SendEmailChoreo.addInput("MessageBody", emailContent); // and here we send the emailContent string

    // tell the Choreo to run and wait for the results. The
    // return code (returnCode) will tell us whether the Temboo client
    // was able to send our request to the Temboo servers
    unsigned int returnCode = SendEmailChoreo.run();

    // a return code of zero (0) means everything worked
    if (returnCode == 0) {
        Serial.println("Success! Email sent!");
        success = true;
    } else {
      // a non-zero return code means there was an error
      // read and print the error message
      while (SendEmailChoreo.available()) {
        char c = SendEmailChoreo.read();
        Serial.print(c);
      }
    }
    SendEmailChoreo.close();

    // do nothing for the next 60 seconds
    delay(60000);
  }
}

Review the first section at the start of void loop(). We have generated two random numbers, and then appended some text and the numbers into two Strings – emailContent and emailSubject.

These are then inserted into the SendEmailChoreo.addInput lines to be the email subject and content. With a little effort you can make a neat email notification, such as shown in this video and the following image from a mobile phone:

Conclusion

It’s no secret that the Yún isn’t the cheapest development board around, however the ease of use as demonstrated in this tutorial shows that the time saved in setup and application is more than worth the purchase price of the board and extra Temboo credits if required.

And if you’re interested in learning more about Arduino, or want to introduce someone else to the interesting world of Arduino – check out my book (now in a third printing!) “Arduino Workshop” from No Starch Press.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Tutorial – Send email with the Arduino Yún appeared first on tronixstuff.

Tronixstuff 23 Nov 01:40
arduino  email  gmail  google  iot  lesson  mail  review  send  temboo  tronixstuff  tutorial  wifi  yún

Old Kit Review – Silicon Chip Mini Stereo Amplifier

Introduction

In this review of an older kit we examine the aptly-named “Mini Stereo Amplifier” from Dick Smith Electronics (catalogue number K5008), based on the article published in the October 1992 issue of Silicon Chip magazine.

The purpose of the kit is to offer a stereo 1W+1W RMS amplifier for use with portable audio devices that only used headphones, such as the typical portable tape players or newly available portable CD players. I feel old just writing that. At the time it would have been quite a useful kit, paired with some inexpensive speakers the end user would have a neat and portable sound solution. So let’s get started.

Assembly

Larger kits like this one that couldn’t be retailed on hanger cards shipped in corrugated cardboard boxes that were glued shut. They looked good but as soon as a sneaky customer tore one open “to have a look” it was ruined and hard to sell:

The amplifier kit was from the time when DSE still cared about kits, so you received the sixteen page “Guide to Kit Construction” plus the kit instructions, nasty red disclaimer sheet, feedback card, plus all the required components and the obligatory coil of solder that was usually rubbish:

However the completeness of the kit is outstanding, everything is included for completion including an enclosure and handy front panel sticker:

… all the sockets, plenty of jumper wire and even the rubber feet:

The PCB is from the old-school of design – without any silk-screening or solder mask:

However the instructions are quite clear so you can figure out the component placement easily. Which brings us to that point – all the components went in with ease:

… then it was a matter of wiring in the sockets, volume potentiometer and power switch:

Instead of using a 3.5mm phono socket for power input, I used a 9V battery snap instead. The amplifier can run on voltages down to 1.8V so it will do for the limited use I have in mind for the amplifier. However in the excitement of assembly I forgot the power switch:

However it wasn’t any effort to rectify that. You will also notice three links on the PCB, which I fitted instead of making coils (more on this later). So at that point the soldering work is finished:

Now to drill out the holes on the faceplate. Instead of tapering out the slots on the side of the housing, I just drilled all the holes on the front panel:

Turns out the adhesive on the front panel sticker had lost its mojo, so I might head off and get some white-on-black tape for the label maker. However in the meanwhile we have one finished mini stereo amplifier, which reminds me of an old grade seven electronics project:

How it works

The amplifier is based on the STMicro TDA2822M (data sheet .pdf) dual low-voltage amplifier IC. In fact the circuit is a slight modification of the stereo example in the data sheet. As mentioned earlier, the benefit of this IC is that it can operate on voltates down to 1.8V, however to reach the maximum power output of 1W per channel into 8Ω loads you need a 9V supply. The output will drop to around 300 mW at 6V.

Finally the Silicon Chip design calls for a triplet of coils, one each on the stereo input wires – used to prevent the RF signal being “shunted away” from the amplifier inputs. The idea behind that was some portable radios used the headphones as an antenna, however we’ll use it with the audio out from a mobile phone so it was easier to skip hand-winding the coils and just put links in the PCB.

Using the Amplifier

The purpose of this kit was to have some sound while working in the garage, so I’ve fitted a pair of cheap 1W 8Ω speakers each to a length of wire and a 3.5mm plug as shown in the image above. And for that purpose, it works very well. In hindsight it turns out the speakers were rated at 1W peak not RMS, however they still sound great.

Conclusion

Another kit review over. This is a genuinely useful kit and a real shame you can’t buy one today. And again – to those who have been asking me privately, no I don’t have a secret line to some underground warehouse of old kits – just keep an eye out on ebay as they pop up now and again. Full-sized images and much more information about the kit are available on flickr.

And while you’re here – are you interested in Arduino? Check out my new book “Arduino Workshop” from No Starch Press.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Old Kit Review – Silicon Chip Mini Stereo Amplifier appeared first on tronixstuff.

Tronixstuff 21 Nov 23:33

Another Nixie clock

For "unknown" reasons, these days things don't move as fast as they used to. I have a dozen or so unfinished projects on my desk, most of them waiting for parts to arrive. And usually and unfortunately, when I get the long awaited part, something else is missing... or not fitting,... or not working.
Today I was finally able to finish the "Open Source Nixie Tube Shield", for which I pledged $15 on kickstarter in return for the PCB.
Without paying attention to the schematic (was it even published before the campaign ended?), I thought it was just another variation of the same Nixie theme, which it really was. I expected to have all parts on hand already, including the Nixie K155ID1 driver Russian IC. Surprise! Instead, the circuit uses CD4028 decoder plus HV transistors. And that's where the 4 week wait is coming from.

I liked the compactness of the board even before I soldered the almost 100 components. But I was a bit disappointed when I realized the shield had a (minor) flaw: the area above Arduino's USB A connector is as highly populated as the rest, if not more. Not only the metal encasing of the USB connector will short the high voltage components on the shield above, but the shield cannot be even pushed all the way in.
A workaround (which I ended up using) is to have an intermediary shield between Arduino and the Nixie tube shield. Another solution is to use an Arduino variant with the mini B USB, like Seeeduino or Leonardo.

But all's well that ends well. To cut the story short, the sample sketch provided worked just fine without interventions. Hardware-wise, I added a DS1307 RTC (since I was going to build a clock), a buzzer (for alarm and chime) and a Bluetooth module (to set up the time without buttons). The only kludge required was a change in the core file Tone.cpp, where I replaced Timer2 with Timer1.

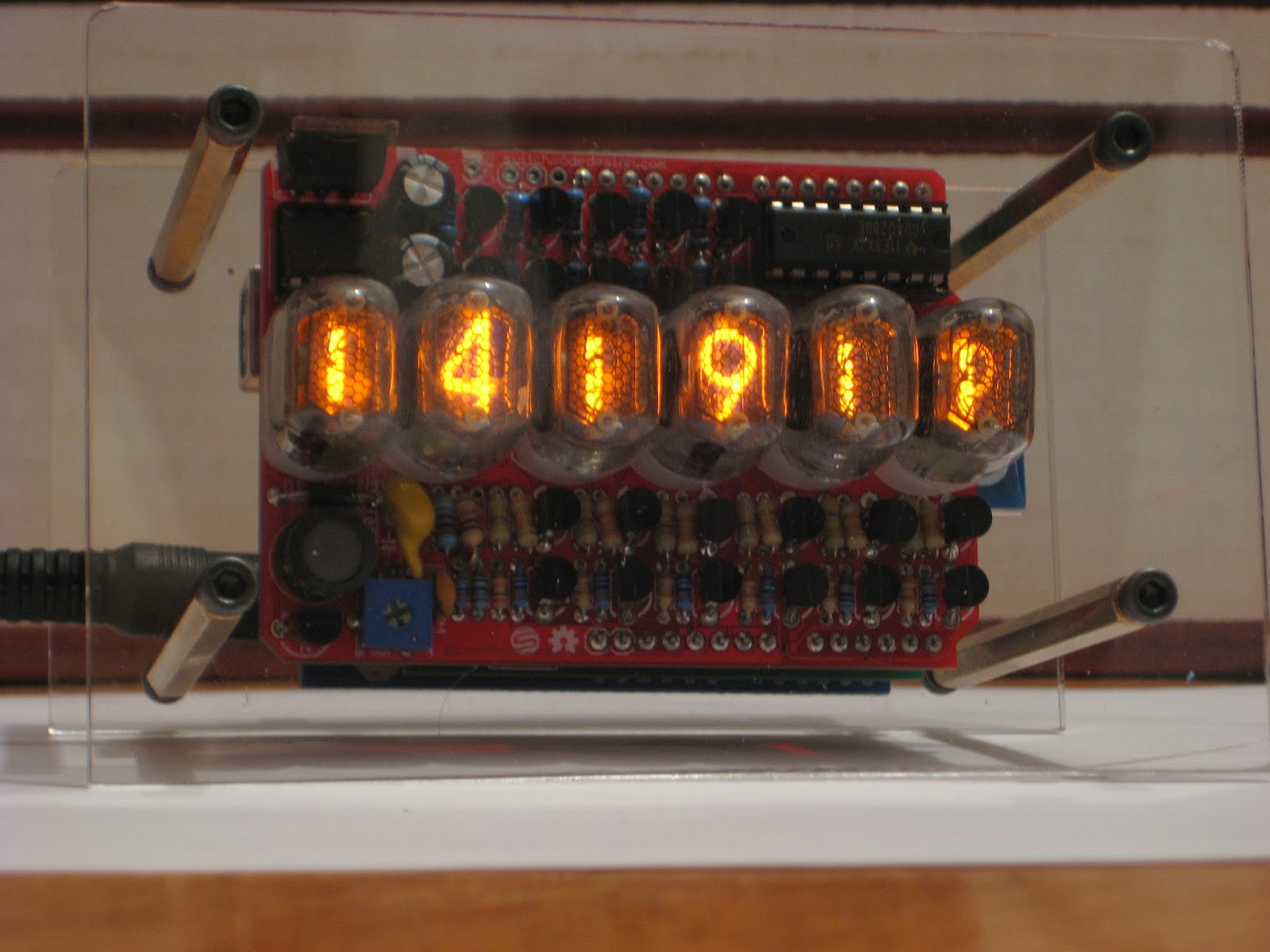

Below are a few photos. For enclosure, I (again) went for the the poor-man's solution, this time hand-cut (as opposed to laser-cut) transparent acrylic plates. (The long standoffs are 60mm, in case one wants to reproduce the experiment.)


I was happy to "upcycle" my Arduino Duemilanove, with the nice bottom exposed and visible :)
The prototype shield was something that I thought I will never use again, but it came in handy.


I also borrowed an idea from akafugu, with the bigger front plate creating a nice slope.



One thing I skipped (because I don't like the combination) is the blue (or any other color, for that matter) LEDs under the tubes.

A working version of the code is available here. It is based on Tyler's code (timer-based multiplexing of the digits, anti-cathode poisoning etc), with added support for RTC (DS1307) and functionality for setting up the time, alarm time, enabling/disabling alarm etc through Bluetooth (using an Android phone or tablet, for example).
The clock can execute the following commands, sent from BlueTerm (after pairing with the device):

  • TIME=hh:mm - sets the current time (second is set to 0);
  • ALARM TIME=hh:mm - sets the alarm time; the alarm hour and minute are also saved to eeprom (and retrieved from there whenever the clock is powered back on);
  • SHOW ALARM - sends back to BlueTerm the alarm hour and minute
  • ALARM ON - enables the alarm; this is also saved to eeprom; the Alarm On/Off status can be shown with a LED connected to A0;
  • ALARM OFF - disables the alarm;
  • STOP ALARM - turn off the sound after the alarm starts beeping;

Note that all commands must be upper case.

The "Stop alarm" feature is reminiscent of Rami's "Deep Sleep iPhone app" and also of Ramos alarm clock (coincidentally, another Nixie clock, close source though), where both of them are asking for user interaction to stop the sounding alarm. Well, in order to stop this Nixie clock from beeping, one needs to open BlueTerm, pair the devices, then type in "STOP ALARM", a sequence of actions that requires anyone to be pretty much awake.

Wise time with Arduino 19 Nov 04:50
bluetooth  nixie  review

Kit Review – Altronics 3 Digit Counter Module

Introduction

In this review we examine the three digit counter module kit from Altronics. The purpose of this kit is to allow you to … count things. You feed it a pulse, which it counts on the rising edge of the signal. You can have it count up or down, and each kit includes three digits.

You can add more digits, in groups of three with a maximum of thirty digits. Plus it’s based on simple digital electronics (no microcontrollers here) so there’s some learning afoot as well. Designed by Graham Cattley the kit was first described in the now-defunct (thanks Graham) January 1998 issue of Electronics Australia magazine.

Assembly

The kit arrives in the typical retail fashion:

And includes the magazine article reprint along with Altronics’ “electronics reference sheet” which covers many useful topics such as resistor colour codes, various formulae, PCB track widths, pinouts and more. There is also a small addendum which uses two extra (and included) diodes for input protection on the clock signal:

The counter is ideally designed to be mounted inside an enclosure of your own choosing, so everything required to build a working counter is included however that’s it:

No IC sockets, however I decided to live dangerously and not use them – the ICs are common and easily found. The PCBs have a good solder mask and silk screen:

With four PCBs (one each for a digit control and one for the displays) the best way to start was to get the common parts out of the way and fitted, such as the current-limiting resistors, links, ICs, capacitors and the display module. The supplied current-limiting resistors are for use with a 9V DC supply, however details for other values are provided in the instructions:

At this point you put one of the control boards aside, and then start fitting the other two to the display board. This involves holding the two at ninety degrees then soldering the PCB pads to the SIL pins on the back of the display board. Starting with the control board for the hundreds digit first:

… at this stage you can power the board for a quick test:

… then fit the other control board for the tens digit and repeat:

Now it’s time to work with the third control board. This one looks after the one’s column and also a few features of the board. Several functions such as display blanking, latch (freeze the display while still counting) and gate (start or stop counting) can be controlled and require resistors fitted to this board which are detailed in the instructions.

Finally, several lengths of wire (included) are soldered to this board so that they can run through the other two to carry signals such as 5V, GND, latch, reset, gate and so on:

These wires can then be pulled through and soldered to the matching pads once the last board has been soldered to the display board:

 You also need to run separate wires between the carry-out and clock-in pins between the digit control boards (the curved ones between the PCBs):

For real-life use you also need some robust connections for the power, clock, reset lines, etc., however for demonstration use I just used alligator clips. Once completed a quick power-up showed the LEDs all working:

How it works

Each digit is driven by a common IC pairing – the  4029 (data sheet) is a presettable up/down counter with a BCD (binary-coded decimal) output which feeds a 4511 (data sheet) that converts the BCD signal into outputs for a 7-segment LED display. You can count at any readable speed, and I threw a 2 kHz square-wave at the counter and it didn’t miss a beat. By default the units count upwards, however by setting one pin on the board LOW you can count downwards.

Operation

Using the counters is a simple matter of connecting power, the signal to count and deciding upon display blanking and the direction of counting. Here’s a quick video of counting up, and here it is counting back down.

Conclusion

This is a neat kit that can be used to count pulses from almost anything. Although some care needs to be taken when soldering, this isn’t anything that cannot be overcome without a little patience and diligence. So if you need to count something, get one ore more of these kits from Altronics. Full-sized images are available on flickr. And while you’re here – are you interested in Arduino? Check out my new book “Arduino Workshop” from No Starch Press – also shortly available from Altronics.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Kit Review – Altronics 3 Digit Counter Module appeared first on tronixstuff.

Tronixstuff 18 Nov 06:55

Tutorial – Google Docs and the Arduino Yún

Introduction

This is the second in a series of tutorials examining various uses of the Arduino Yún. In this article we’ll examine how your Arduino Yún can send data that it captures from the analogue and digital inputs and a real-time clock IC to an online Google Docs spreadsheet. Doing so gives you a neat and inexpensive method of capturing data in real-time and having the ability to analyse the data from almost anywhere, and export it with very little effort.

Getting Started

If you haven’t already done so, ensure your Arduino Yún can connect to your network via WiFi or cable – and get a Temboo account (we run through this here). And you need (at the time of writing) IDE version 1.5.4 which can be downloaded from the Arduino website. Finally, you will need a Google account, so if you don’t have one – sign up here.

Testing the Arduino Yún-Google Docs connection

In this first example we’ll run through the sketch provided by Temboo so you can confirm everything works as it should. First of all, create a spreadsheet in Google Docs. Call it “ArduinoData” and label the first two columns as “time” and “sensor”, as shown in the screen shot below:

Always label the required columns. You can call them whatever you need. For new Google users, the URL shown in my example will be different to yours. Next, copy the following sketch to the IDE:

/*
  SendDataToGoogleSpreadsheet

  Demonstrates appending a row of data to a Google spreadsheet from the Arduino Yun
  using the Temboo Arduino Yun SDK.

  This example code is in the public domain.

*/

#include <Bridge.h>
#include <Temboo.h>
#include "TembooAccount.h" // contains Temboo account information

/*** SUBSTITUTE YOUR VALUES BELOW: ***/

// Note that for additional security and reusability, you could
// use #define statements to specify these values in a .h file.

const String GOOGLE_USERNAME = "your-google-username";
const String GOOGLE_PASSWORD = "your-google-password";

// the title of the spreadsheet you want to send data to
// (Note that this must actually be the title of a Google spreadsheet
// that exists in your Google Drive/Docs account, and is configured
// as described above.)
const String SPREADSHEET_TITLE = "your-spreadsheet-title";

const unsigned long RUN_INTERVAL_MILLIS = 60000; // how often to run the Choreo (in milliseconds)

// the last time we ran the Choreo
// (initialized to 60 seconds ago so the
// Choreo is run immediately when we start up)
unsigned long lastRun = (unsigned long)-60000;

void setup() {

  // for debugging, wait until a serial console is connected
  Serial.begin(9600);
  delay(4000);
  while(!Serial);

  Serial.print("Initializing the bridge...");
  Bridge.begin();
  Serial.println("Done");
}

void loop()
{
  // get the number of milliseconds this sketch has been running
  unsigned long now = millis();

  // run again if it's been 60 seconds since we last ran
  if (now - lastRun >= RUN_INTERVAL_MILLIS) {

    // remember 'now' as the last time we ran the choreo
    lastRun = now;

    Serial.println("Getting sensor value...");

    // get the value we want to append to our spreadsheet
    unsigned long sensorValue = getSensorValue();

    Serial.println("Appending value to spreadsheet...");

    // we need a Process object to send a Choreo request to Temboo
    TembooChoreo AppendRowChoreo;

    // invoke the Temboo client
    // NOTE that the client must be reinvoked and repopulated with
    // appropriate arguments each time its run() method is called.
    AppendRowChoreo.begin();

    // set Temboo account credentials
    AppendRowChoreo.setAccountName(TEMBOO_ACCOUNT);
    AppendRowChoreo.setAppKeyName(TEMBOO_APP_KEY_NAME);
    AppendRowChoreo.setAppKey(TEMBOO_APP_KEY);

    // identify the Temboo Library choreo to run (Google > Spreadsheets > AppendRow)
    AppendRowChoreo.setChoreo("/Library/Google/Spreadsheets/AppendRow");

    // set the required Choreo inputs
    // see https://www.temboo.com/library/Library/Google/Spreadsheets/AppendRow/
    // for complete details about the inputs for this Choreo

    // your Google username (usually your email address)
    AppendRowChoreo.addInput("Username", GOOGLE_USERNAME);

    // your Google account password
    AppendRowChoreo.addInput("Password", GOOGLE_PASSWORD);

    // the title of the spreadsheet you want to append to
    AppendRowChoreo.addInput("SpreadsheetTitle", SPREADSHEET_TITLE);

    // convert the time and sensor values to a comma separated string
    String rowData(now);
    rowData += ",";
    rowData += sensorValue;

    // add the RowData input item
    AppendRowChoreo.addInput("RowData", rowData);

    // run the Choreo and wait for the results
    // The return code (returnCode) will indicate success or failure
    unsigned int returnCode = AppendRowChoreo.run();

    // return code of zero (0) means success
    if (returnCode == 0) {
      Serial.println("Success! Appended " + rowData);
      Serial.println("");
    } else {
      // return code of anything other than zero means failure
      // read and display any error messages
      while (AppendRowChoreo.available()) {
        char c = AppendRowChoreo.read();
        Serial.print(c);
      }
    }

    AppendRowChoreo.close();
  }
}

// this function simulates reading the value of a sensor
unsigned long getSensorValue() {
  return analogRead(A0);
}

Now look for the following two lines in the sketch:

const String GOOGLE_USERNAME = "your-google-username";
const String GOOGLE_PASSWORD = "your-google-password";

This is where you put your Google account username and password. For example, if your Google account is “CI5@gmail.com” and password “RS2000Escort” the two lines will be:

const String GOOGLE_USERNAME = "CI5@gmail.com";
const String GOOGLE_PASSWORD = "RS2000Escort";

Next, you need to insert the spreadsheet name in the sketch. Look for the following line:

const String SPREADSHEET_TITLE = "your-spreadsheet-title";

and change your-spreadsheet-title to ArduinoData.

Finally, create your header file by copying the the header file data from here (after logging to Temboo) into a text file and saving it with the name TembooAccount.h in the same folder as your sketch from above. You know this has been successful when opening the sketch, as you will see the header file in a second tab, for example:

Finally, save and upload your sketch to the Arduino Yún. After a moment or two it will send values to the spreadsheet, and repeat this every sixty seconds – for example:

If your Yún is connected via USB you can also watch the status via the serial monitor.

 One really super-cool and convenient feature of using Google Docs is that you can access it from almost anywhere. Desktop, tablet, mobile… and it updates in real-time:

So with your Yún you can capture data and view it from anywhere you can access the Internet. Now let’s do just that.

Sending your own data from the Arduino Yún to a Google Docs Spreadsheet

In this example we’ll demonstrate sending three types of data:

With these types of data you should be able to represent all manner of things. We use the RTC as the time and date from it will match when the data was captured, not when the data was written to the spreadsheet. If you don’t have a DS3232 you can also use a DS1307.

If you’re not familiar with these parts and the required code please review this tutorial. When connecting your RTC – please note that SDA (data) is D2 and SCL (clock) is D3 on the Yún.

The sketch for this example is a modified version of the previous sketch, except we have more data to send. The data is captured into variables from the line:

// get the values from A0 to A3 and D7, D8

You can send whatever data you like, as long as it is all appended to a String by the name of rowdata. When you want to use a new column in the spreadsheet, simply append a comma “,” between the data in the string. In other words, you’re creating a string of CSV (comma-separated values) data. You can see this process happen from the line that has the comment:

// CSV creation starts here!

in the example sketch that follows shortly. Finally, you can alter the update rate of the sketch – it’s set to every 60 seconds, however you can change this by altering the 60000 (milliseconds) in the following line:

const unsigned long RUN_INTERVAL_MILLIS = 60000;

Don’t forget that each update costs you a call and some data from your Temboo account – you only get so many for free then you have to pay for more. Check your Temboo account for more details.

So without further ado, the following sketch will write the values read from A0~A3, the status of D7 and D8 (1 for HIGH, 0 for LOW) along with the current date and time to the spreadsheet. Don’t forget to update the password, username and so on as you did for the first example sketch:

#include <Bridge.h>
#include <Temboo.h>
#include "TembooAccount.h" // contains Temboo account information
#include "Wire.h"
#define DS3232_I2C_ADDRESS 0x68

unsigned long analog0, analog1, analog2, analog3;
int digital7 = 7;
int digital8 = 8;
boolean d7, d8;
byte second, minute, hour, dayOfWeek, dayOfMonth, month, year; // for RTC

const String GOOGLE_USERNAME = "your-google-username";
const String GOOGLE_PASSWORD = "your-google-password";
const String SPREADSHEET_TITLE = "your-spreadsheet-title";

// update interval in milliseconds (every minute would be 60000)
const unsigned long RUN_INTERVAL_MILLIS = 60000;
unsigned long lastRun = (unsigned long)-60000;

void setup()
{
  // activate I2C bus
  Wire.begin();
  // for debugging, wait until a serial console is connected
  Serial.begin(9600);
  delay(4000);
  while(!Serial);
  Serial.print("Initializing the bridge...");
  Bridge.begin();
  Serial.println("Done");
  // Set up digital inputs to monitor
  pinMode(digital7, INPUT);
  pinMode(digital8, INPUT);
}

// for RTC
// Convert normal decimal numbers to binary coded decimal
byte decToBcd(byte val)
{
  return ( (val/10*16) + (val%10) );
}

// Convert binary coded decimal to normal decimal numbers
byte bcdToDec(byte val)
{
  return ( (val/16*10) + (val%16) );
}

void readDS3232time(byte *second,
byte *minute,
byte *hour,
byte *dayOfWeek,
byte *dayOfMonth,
byte *month,
byte *year)
{
  Wire.beginTransmission(DS3232_I2C_ADDRESS);
  Wire.write(0); // set DS3232 register pointer to 00h
  Wire.endTransmission();
  Wire.requestFrom(DS3232_I2C_ADDRESS, 7); // request 7 bytes of data from DS3232 starting from register 00h
  // A few of these need masks because certain bits are control bits
  *second     = bcdToDec(Wire.read() & 0x7f);
  *minute     = bcdToDec(Wire.read());
  *hour       = bcdToDec(Wire.read() & 0x3f);  // Need to change this if 12 hour am/pm
  *dayOfWeek  = bcdToDec(Wire.read());
  *dayOfMonth = bcdToDec(Wire.read());
  *month      = bcdToDec(Wire.read());
  *year       = bcdToDec(Wire.read());
}

void setDS3232time(byte second, byte minute, byte hour, byte dayOfWeek, byte dayOfMonth, byte month, byte year)
// sets time and date data to DS3232
{
  Wire.beginTransmission(DS3232_I2C_ADDRESS);
  Wire.write(0); // sends 00h - seconds register
  Wire.write(decToBcd(second));     // set seconds
  Wire.write(decToBcd(minute));     // set minutes
  Wire.write(decToBcd(hour));       // set hours
  Wire.write(decToBcd(dayOfWeek));  // set day of week (1=Sunday, 7=Saturday)
  Wire.write(decToBcd(dayOfMonth)); // set date (1~31)
  Wire.write(decToBcd(month));      // set month
  Wire.write(decToBcd(year));       // set year (0~99)
  Wire.endTransmission();
}

void loop()
{
  // get the number of milliseconds this sketch has been running
  unsigned long now = millis();

  // run again if it's been 60 seconds since we last ran
  if (now - lastRun >= RUN_INTERVAL_MILLIS) {

    // remember 'now' as the last time we ran the choreo
    lastRun = now;
    Serial.println("Getting sensor values...");
    // get the values from A0 to A3 and D7, D8
    analog0 = analogRead(0);
    analog1 = analogRead(1);
    analog2 = analogRead(2);
    analog3 = analogRead(3);
    d7 = digitalRead(digital7);
    d8 = digitalRead(digital8);

    Serial.println("Appending value to spreadsheet...");
    // we need a Process object to send a Choreo request to Temboo
    TembooChoreo AppendRowChoreo;

    // invoke the Temboo client
    // NOTE that the client must be reinvoked and repopulated with
    // appropriate arguments each time its run() method is called.
    AppendRowChoreo.begin();

    // set Temboo account credentials
    AppendRowChoreo.setAccountName(TEMBOO_ACCOUNT);
    AppendRowChoreo.setAppKeyName(TEMBOO_APP_KEY_NAME);
    AppendRowChoreo.setAppKey(TEMBOO_APP_KEY);

    // identify the Temboo Library choreo to run (Google > Spreadsheets > AppendRow)
    AppendRowChoreo.setChoreo("/Library/Google/Spreadsheets/AppendRow");
    // your Google username (usually your email address)
    AppendRowChoreo.addInput("Username", GOOGLE_USERNAME);
    // your Google account password
    AppendRowChoreo.addInput("Password", GOOGLE_PASSWORD);
    // the title of the spreadsheet you want to append to
    AppendRowChoreo.addInput("SpreadsheetTitle", SPREADSHEET_TITLE);

    // get time and date from RTC
    readDS3232time(&second, &minute, &hour, &dayOfWeek, &dayOfMonth, &month, &year);

    // smoosh all the sensor, date and time data into a String
    // CSV creation starts here!
    String rowData(analog0);
    rowData += ",";
    rowData += analog1;
    rowData += ",";
    rowData += analog2;
    rowData += ",";
    rowData += analog3;
    rowData += ",";
    rowData += d7;
    rowData += ",";
    rowData += d8;
    rowData += ",";
    // insert date
    rowData += dayOfMonth;
    rowData += "/";
    rowData += month;
    rowData += "/20";
    rowData += year;
    rowData += ",";
    // insert time
    rowData += hour;
    if (minute<10)
    {
        rowData += "0";
    }
    rowData += minute;
    rowData += ".";
    if (second<10)
    {
        rowData += "0";
    }
    rowData += second;
    rowData += "h";

    // add the RowData input item
    AppendRowChoreo.addInput("RowData", rowData);

    // run the Choreo and wait for the results
    // The return code (returnCode) will indicate success or failure
    unsigned int returnCode = AppendRowChoreo.run();

    // return code of zero (0) means success
    if (returnCode == 0) {
      Serial.println("Success! Appended " + rowData);
      Serial.println("");
    } else {
      // return code of anything other than zero means failure
      // read and display any error messages
      while (AppendRowChoreo.available()) {
        char c = AppendRowChoreo.read();
        Serial.print(c);
      }
    }
    AppendRowChoreo.close();
  }
}

… which in our example resulted with the following:

… and here is a video that shows how the spreadsheet updates in real time across multiple devices:

 Conclusion

It’s no secret that the Yún isn’t the cheapest devleopment board around, however the ease of use as demonstrated in this tutorial shows that the time saved in setup and application is more than worth the purchase price of the board and extra Temboo credits if required.

And if you’re interested in learning more about Arduino, or want to introduce someone else to the interesting world of Arduino – check out my book (now in a third printing!) “Arduino Workshop” from No Starch Press.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Tutorial – Google Docs and the Arduino Yún appeared first on tronixstuff.

Tronixstuff 11 Nov 06:35

Old Kit Review – Diesel Sound Simulator for Model Railroads

Introduction

In this review of an older kit (circa 1993~1997) we examine the Diesel Sound Simulator for Model Railroads kit from (the now defunct) Dick Smith Electronics, based on the article published in the December 1992 issue of Silicon Chip magazine.

The purpose of this kit is to give you a small circuit which can fit in a HO scale (or larger) locomotive, or hidden underneath the layout – that can emulate the rumbling of a diesel-electric locomotive to increase the realism of a train. However the kit is designed for use with a PWM train controller (also devised by Silicon Chip!) so not for the simple direct-DC drive layouts.

Assembly

The diesel sound kit was from the time when DSE still cared about kits, so you received the sixteen page “Guide to Kit Construction” plus the kit instructions, nasty red disclaimer sheet, feedback card, plus all the required components and the obligatory coil of solder that was usually rubbish:

Everything required to get going is included, except IC sockets. My theory is it’s cheaper to use your own sockets than source older CMOS/TTL later on if you want to reuse the ICs, so sockets are now mandatory here:

The PCB is from the old school of “figure-it-out-yourself”, no fancy silk-screening here:

Notice the five horizontal pads between the two ICs – these were for wire bridges in case you needed to break the PCB in two to fit inside your locomotive.

Actual assembly was straight-forward, all the components went in without any issues. Having two links under IC2 was a little annoying, however a short while later the PCB was finished and the speaker attached:

How it works

As mentioned earlier this diesel sound kit was designed for use with the Silicon Chip train PWM controller, so the design is a little different than expected. It can handle a voltage of around 20 V, and the sound is determined by the speed of the locomotive.

The speed is determined by the back EMF measured from the motor – and (from the manual) this is the voltage produced by the motor which opposes the current flow through it and this voltage is directly proportional to speed.

Not having a 20V DC PWM supply laying about I knocked up an Arduino to PWM a 20V DC supply via an N-MOSFET module and experimented with the duty cycle to see what sort of noises could be possible. The output was affected somewhat by the supply voltage, however seemed a little higher in pitch than expected.

You can listen to the results in the following video:

I reckon the sound from around the twenty second mark isn’t a bad idle noise, however in general not that great. The results will ultimately be a function of a lower duty-cycle than I could create at the time and the values of R1 and R2 used in the kit.

 Conclusion

Another kit review over. With some time spent experimenting you could generate the required diesel sounds, a Paxman-Valenta it isn’t… but it was a fun kit and I’m sure it was well-received at the time. To those who have been asking me privately, no I don’t have a secret line to some underground warehouse of old kits – just keep an eye out on ebay and they pop up now and again. Full-sized images and much more information about the kit are available on flickr.

And while you’re here – are you interested in Arduino? Check out my new book “Arduino Workshop” from No Starch Press.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitterGoogle+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Old Kit Review – Diesel Sound Simulator for Model Railroads appeared first on tronixstuff.

Tronixstuff 10 Nov 08:12
