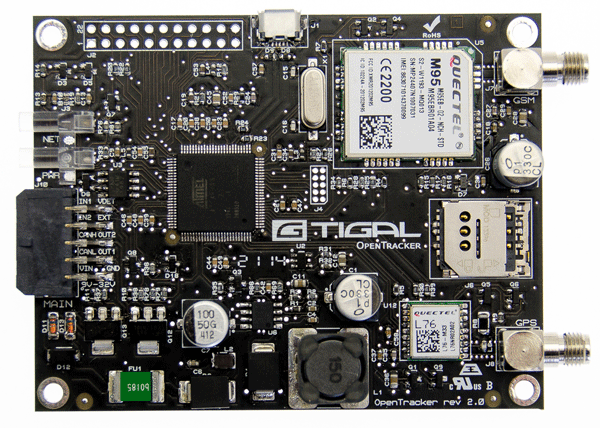

Let’s have a look at some tech specs. The OpenTracker v2 is ready to run out-of-the-box and includes the same powerful 32-bit ATMEL SAM3A8C ARM controller as the Arduino Due, a Quectel M95 GSM/GPRS modem for wireless connectivity, a Quectel L76 GPS/GLONASS module with Assisted GPS, CAN-BUS, plenty of I/O options and a wide operating temperature range of -35°C to +80°C. The included CAN-BUS, plentiful I/O and on-board GSM/GPRS modem can be used to create many interesting applications such as CAN-BUS logger, SMS Gateway, SMS Remote Controller, and Weather Station with SMS notifications to name a few.

The OpenTracker v2 is available as a complete bundle including the Board, High-Quality Aluminum Enclosure, Power and Programming Cable as well as a GSM/GPS Antenna, or as a stand-alone board for those interested in using the board as an enhanced Arduino Due. The free online tracking interface is available at opentracker.tigal.com.

Support them on Indiegogo! (only a couple of days left but it’s flexible funding and going ahead with the manufacturing in any case!)

Have you ever wondered how far your dog actually runs when you take it to the park? You could be a standard consumer and purchase a GPS tracking collar for $100 or more, or you could follow [Becky Stern's] lead and build your own simple but effective GPS tracking harness.

[Becky] used two FLORA modules for this project; The FLORA main board, and the FLORA GPS module. The FLORA main board is essentially a small, sewable Arduino board. The GPS module obviously provides the tracking capabilities, but also has built-in data logging functionality. This means that [Becky] didn’t need to add complexity with any special logging circuit. The GPS coordinates are logged in a raw format, but they can easily be pasted into Google Maps for viewing as demonstrated by [Becky] in the video after the break. The system uses the built-in LED on the FLORA main board to notify the user when the GPS has received a lock and that the program is running.

The whole system runs off of three AAA batteries which, according to [Becky], can provide several hours of tracking. She also installed a small coin cell battery for the GPS module. This provides reserve power for the GPS module so it can remember its previous location. This is not necessary, but it provides a benefit in that the GPS module can remember it’s most recent location and therefore discover its location much faster.

If you're the sort who overspends at the mall, you may need a firm reminder to watch your budget. How does an ever-vigilant handbag sound? Finder.com.au could soon make one: meet the iBag, a prototype carryall that locks you out if it believes you're going to splurge. The Arduino-powered bag automatically shuts tight at those times you're most likely to shop. Outside of those moments, it uses GPS to warn you when you get too close to favorite stores; ignore the alert and it will both record when you take out your wallet as well as send a text message to a trusted partner. iBag is primarily a publicity stunt meant to highlight the dangers of credit card debt, but it might become a reality. The site is asking potential customers to register their interest, and it may sell both men's and women's versions of the bag for $199 AUD ($173 US) if there's enough demand.

Filed under: GPS, Household

Comments

Source: Finder.com.au

Learn how to use MediaTek 3329-based GPS shields with Arduino in Chapter 19 of our Arduino Tutorials. The first chapter is here, the complete series is detailed here. If you have an EM406A GPS module, please visit the separate tutorial. Updated 15/01/2014

Introduction

In this instalment we will introduce and examine the use of the Global Positioning System receivers with Arduino systems. What is the GPS? In very simple terms, a fleet of satellites orbit the earth, transmitting signals from space. Your GPS receiver uses signals from these satellites to triangulate position, altitude, compass headings, etc.; and also receives a time and date signal from these satellites.

The most popular GPS belongs to the USA, and was originally for military use – however it is now available for users in the free world.

Interestingly, the US can switch off or reduce accuracy of their GPS in various regions if necessary, however many people tell me this is not an issue unless you’re in a combat zone against the US forces. For more information, have a look at Wikipedia or the USAF Space Command GPS Ops Centre site. As expected,  other countries have their own GPS as well – such as Russia, China, and the EU is working on one as well.

So – how can us mere mortals take advantage of a multi-billion dollar space navigation system just with our simple Arduino? Easy – with an inexpensive GPS receiver and shield. In this tutorial we’ll use a GPS shield based on the MediaTek3329 GPS receiver from Tronixlabs.

Unlike the EM406A used in the other tutorial, the whole lot is all on one shield – and after some experimenting has better reception. Plus there’s an onboard SD card socket which we’ll use for a GPS logging device. The only catch is that you need to solder the stacking headers yourself. (update – if purchased from Tronixlabs these will be fully assembled):

Apart from the GPS shield we’ll also be using a typical Arduino-compatible LCD shield and of course an Arduino Uno or compatible. Finally before getting started, you need to set the two jumpers on the GPS shield as shown in the following image:

By doing this the serial data lines from the GPS receiver can be connected to Arduino D2 and D3 – which we will use with SoftwareSerial. The benefit of doing it this way is that you can then upload sketches without any hardware changes and also use the serial monitor and GPS at the same time. So let’s get started.

Testing your GPS shield

Simply connect your GPS shield as described above to your Arduino Uno or compatible, and upload the following sketch:

// Example 19.1

#include <SoftwareSerial.h>
SoftwareSerial GPS(2,3); // configure software serial port -

void setup()
{
  GPS.begin(9600);
  Serial.begin(9600);
}
void loop()
{
  byte a;
    if (GPS.available() > 0 )
  {
    a = GPS.read(); // get the byte of data from the GPS
    Serial.write(a);
  }
}

Note the use of SoftwareSerial in the sketch. As mentioned earlier, the GPS data is transferred to the Arduino via D2/D2 – which we set up as a software serial port.

If possible try to get your hardware close to a window, then open the serial monitor window. The first time you power up your receiver, it may take a  minute or so to lock onto the available satellites, this period of time is the cold start time.

The subsequent times you power it up, the searching time is reduced somewhat as our receiver stores some energy in a supercap (very high-value capacitor) to remember the satellite data, which it will use the next time to reduce the search time (as it already has a “fair idea” where the satellites are).

Moving on, after a few moments you should be presented with a scrolling wall of text, for example:

What on Earth does all that mean? For one thing the hardware is working correctly. Excellent! Now how do we decode these space-signals… They are called NMEA codes. Let’s break down one and see what it means. For example, the line:

$GPRMC,100748.000,A,3754.9976,S,14507.0283,E,0.00,263.36,140114,,,A*70

• $GPRMC tells us the following data is essential point-velocity-time data;
• 100748.000 is the universal time constant (Greenwich Mean Time) – 10:07:48 (hours, minutes, seconds). So you now have a clock as well.
• A is status – A for active and data is valid, V for void and data is not valid.
• 3754.9976  is degrees latitude position data = 37 degrees, 54.9976′
• S for south (south is negative, north is positive)
• 14507.0283 is degrees longitude position data = 145 degrees, 07.0283′
• E for east (east is positive, west is negative)
• 0.00 is my speed in knots over ground. This shows the inaccuracy  that can be caused by not having a clear view of the sky
• 263.36 – course over ground (0 is north, 180 is south, 270 is west, 90 is east)
• 140114 is the date – 14th January 2014
• the next is magnetic variation for which we don’t have a value
• checksum number

Thankfully the data is separated by commas. This will be useful later when you log the data to a text file using the SD card, as you will then be able to use the data in a spreadsheet very easily. For more explanation about the data, here is the NMEA Reference Manual that explains them all.

Extracting the GPS data

You can’t decode all that NMEA on the fly, so thankfully there is an Arduino library to do this for us – TinyGPS. So head over to the library website, download and install the library before continuing.

Now with the same hardware from the previous example, upload the following sketch:

// Example 19.2

#include <TinyGPS.h>
#include <SoftwareSerial.h>
SoftwareSerial GPS(2,3); // configure software serial port

// Create an instance of the TinyGPS object
TinyGPS shield;

void setup()
{
  GPS.begin(9600);
  Serial.begin(9600);
}

// The getgps function will interpret data from GPS and display on serial monitor
void getgps(TinyGPS &gps)
{
  // Define the variables that will be used
  float latitude, longitude;
  // Then call this function
  shield.f_get_position(&latitude, &longitude);
  Serial.println("--------------------------------------------------------------");
  Serial.print("Lat: ");
  Serial.print(latitude,5);
  Serial.print(" Long: ");
  Serial.println(longitude,5);

  int year;
  byte month, day, hour, minute, second, hundredths;
  shield.crack_datetime(&year,&month,&day,&hour,&minute,&second,&hundredths);

  // Print data and time
  Serial.print("GMT - ");
  Serial.print(hour, DEC);
  Serial.print(":");
  if (minute<10)
  {
    Serial.print("0");
    Serial.print(minute, DEC);
  }
  else if (minute>=10)
  {
    Serial.print(minute, DEC);
  }
  Serial.print(":");
  if (second<10)
  {
    Serial.print("0");
    Serial.print(second, DEC);
  }
  else if (second>=10)
  {
    Serial.print(second, DEC);
  }
  Serial.print(" ");
  Serial.print(day, DEC);
  Serial.print("/");
  Serial.print(month, DEC);
  Serial.print("/");
  Serial.println(year, DEC);
  Serial.print("Altitude ");
  Serial.print(gps.f_altitude());
  Serial.print("m ");
  Serial.print(gps.f_speed_kmph());
  Serial.println("km/h");
}

void loop()
{
  byte a;
  if ( GPS.available() > 0 ) // if there is data coming from the GPS shield
  {
    a = GPS.read(); // get the byte of data
    if(shield.encode(a)) // if there is valid GPS data...
    {
      getgps(shield); // then grab the data and display it on the LCD
    }
  }
}

How this works is quite simple. In void loop() the sketch waits for data to come from the GPS receiver, and then checks if it’s valid GPS data. Then it passes over to the function getgps() which uses the function:

shield.f_get_position

to extract the location data and place it in two variables. Next, another function:

shield.crack_datetime

will extract the date and time data, and place them in the pre-determined variables. Finally the use of

gps.f_altitude

and

gps.f_speed_kmph

can be assigned to variables as they store the altitude and speed respectively. These functions will be commonly used across all the examples, so you can see how they can be used.

To test the sketch, position the hardware and open the serial monitor. After a moment you should be presented with the GPS data in a much more useful form, for example:

At this point you should be able to form ideas of how to harness that data and display or work with it in a more useful way. Useful hint – you can enter coordinates directly into Google Maps to see where it is, for example:

 A portable GPS display

Now that you can extract the GPS data, it’s a simple matter of sending it to an LCD shield for display. Just add the LCD shield to your hardware and upload the next sketch. Be sure to change the values in the LiquidCrysal LCD… line if your shield uses different digital pins.

// Example 19.3

#include <TinyGPS.h>
#include <SoftwareSerial.h>
SoftwareSerial GPS(2,3); // configure software serial port

// Create an instance of the TinyGPS object
TinyGPS shield;

#include <LiquidCrystal.h>
LiquidCrystal lcd(8, 13, 9, 4, 5, 6, 7);

void setup()
{
  lcd.begin(16, 2);
  lcd.clear();
  lcd.print("tronixstuff.com");
  GPS.begin(9600);
  delay(1000);
  lcd.clear();
}

// The getgps function will interpret data from GPS and display on serial monitor
void getgps(TinyGPS &gps)
{
  // Define the variables that will be used
  float latitude, longitude;
  // Then call this function
  shield.f_get_position(&latitude, &longitude);
  lcd.setCursor(0,0);
  lcd.print("Lat: ");
  lcd.print(latitude,5);
  lcd.print("  ");
  lcd.setCursor(0,1);
  lcd.print("Long: ");
  lcd.print(longitude,5);
  lcd.print(" ");
}

void loop()
{
  byte a;
  if ( GPS.available() > 0 ) // if there is data coming from the GPS shield
  {
    a = GPS.read(); // get the byte of data
    if(shield.encode(a)) // if there is valid GPS data...
    {
      getgps(shield); // then grab the data and display it on the LCD
    }
  }
}

Again, position the hardware and your current position should be shown on the LCD, for example:

A GPS Clock

Armed with the same hardware you can also create a GPS clock. With this you can finally have a reference clock and end all arguments about the correct time without calling the speaking clock. Just use the same hardware from the previous example and upload the following sketch:

// Example 19.4

#include <TinyGPS.h>
#include <SoftwareSerial.h>
SoftwareSerial GPS(2,3); // configure software serial port

// Create an instance of the TinyGPS object
TinyGPS shield;

#include <LiquidCrystal.h>
LiquidCrystal lcd(8, 13, 9, 4, 5, 6, 7);

void setup()
{
  lcd.begin(16, 2);
  lcd.clear();
  lcd.print("tronixstuff.com");
  GPS.begin(9600);
  delay(1000);
  lcd.clear();
}

// The getgps function will interpret data from GPS and display on serial monitor
void getgps(TinyGPS &gps)
{
  int year;
  byte month, day, hour, minute, second, hundredths;
  shield.crack_datetime(&year,&month,&day,&hour,&minute,&second,&hundredths);

  // Print data and time
  lcd.setCursor(0,0);
  lcd.print("GMT - ");
  lcd.print(hour, DEC);
  lcd.print(":");
  if (minute<10)
  {
    lcd.print("0");
    lcd.print(minute, DEC);
  }
  else if (minute>=10)
  {
    lcd.print(minute, DEC);
  }
  lcd.print(":");
  if (second<10)
  {
    lcd.print("0");
    lcd.print(second, DEC);
  }
  else if (second>=10)
  {
    lcd.print(second, DEC);
  }

  lcd.setCursor(0,1);
  lcd.print(day, DEC);
  lcd.print("/");
  lcd.print(month, DEC);
  lcd.print("/");
  lcd.print(year, DEC);

}

void loop()
{
  byte a;
  if ( GPS.available() > 0 ) // if there is data coming from the GPS shield
  {
    a = GPS.read(); // get the byte of data
    if(shield.encode(a)) // if there is valid GPS data...
    {
      getgps(shield); // then grab the data and display it on the LCD
    }
  }
}

Now position the hardware again, and after a moment the time will appear – as shown in this video.

Unless you live in the UK or really need to know what GMT/UTC is, a little extra work is required to display your local time. First you will need to know in which time zone you are located – find it in this map.

If your time zone is positive (e.g. GMT +10) – you need to add 10 to your hour value, and if it’s over 23 you then subtract 24 to get the correct hours.

If your time zone is negative (e.g. GMT – 5) – you need to subtract 5 from your hour value, and if it’s under zero  you then add 24 to get the correct hours.

GPS Speedometer

Just as with the clock, it’s easy to display the speed readings with the LCD. Using the same hardware as above, enter and upload the following sketch:

// Example 19.5

#include <TinyGPS.h>
#include <SoftwareSerial.h>
SoftwareSerial GPS(2,3); // configure software serial port

// Create an instance of the TinyGPS object
TinyGPS shield;

#include <LiquidCrystal.h>
LiquidCrystal lcd(8, 13, 9, 4, 5, 6, 7);

void setup()
{
  lcd.begin(16, 2);
  lcd.clear();
  lcd.print("tronixstuff.com");
  GPS.begin(9600);
  delay(1000);
  lcd.clear();
}

// The getgps function will interpret data from GPS and display on serial monitor
void getgps(TinyGPS &gps)
{
  int year;
  byte month, day, hour, minute, second, hundredths, kmh, mph;
  shield.crack_datetime(&year,&month,&day,&hour,&minute,&second,&hundredths);

  // Print data and time
  lcd.setCursor(0,0);
  kmh=gps.f_speed_kmph();

  lcd.print(kmh, DEC);
  lcd.print(" km/h      ");
/*
  mph = kmh * 1.6;
  lcd.print(mph, DEC);
  lcd.print(" MPH   ");
*/
}

void loop()
{
  byte a;
  if ( GPS.available() > 0 ) // if there is data coming from the GPS shield
  {
    a = GPS.read(); // get the byte of data
    if(shield.encode(a)) // if there is valid GPS data...
    {
      getgps(shield); // then grab the data and display it on the LCD
    }
  }
}

Now position the hardware again, and after a moment your speed should appear. You might get some odd readings if indoors, as the receiver needs data from several satellites to accurately determine your speed. The sketch is written for km/h, however you can replace the display lines with the section that is commented out to display miles per hour.

So at this point find a car and driver, an external power supply and go for a drive. You may find the GPS speed is quite different to the vehicle’s speedometer.

Build a GPS logging device

And for our final example, let’s make a device that captures the position, speed and time data to SD card for later analysis. The required hardware is just the GPS shield and Arduino Uno or compatible board – plus an SD memory card that is formatted to FAT16. SDXC cards may or may not work, they’re quite finicky – so try and get an older standard card.

Now enter and upload the following sketch:

// Example 19.6

#include <SD.h>
#include <TinyGPS.h>
#include <SoftwareSerial.h>
SoftwareSerial shield(2,3); // configure software serial port

// Create an instance of the TinyGPS object
TinyGPS gps;

void setup()
{
  pinMode(10, OUTPUT);
  shield.begin(9600);
  Serial.begin(9600);
  // check that the microSD card exists and can be used v
  if (!SD.begin(10)) {
    Serial.println("Card failed, or not present");
    // stop the sketch
    return;
  }
  Serial.println("SD card is ready");
}

void getgps(TinyGPS &gps)
{
  float latitude, longitude;
  int year;
  byte month, day, hour, minute, second, hundredths;

  //decode and display position data
  gps.f_get_position(&latitude, &longitude);
  File dataFile = SD.open("DATA.TXT", FILE_WRITE);
  // if the file is ready, write to it
  if (dataFile)
  {
    dataFile.print("Lat: ");
    dataFile.print(latitude,5);
    dataFile.print(" ");
    dataFile.print("Long: ");
    dataFile.print(longitude,5);
    dataFile.print(" ");
    // decode and display time data
    gps.crack_datetime(&year,&month,&day,&hour,&minute,&second,&hundredths);
    // correct for your time zone as in Project #45
    hour=hour+11;
    if (hour>23)
    {
      hour=hour-24;
    }
   if (hour<10)
    {
      dataFile.print("0");
    }
    dataFile.print(hour, DEC);
    dataFile.print(":");
    if (minute<10)
    {
      dataFile.print("0");
    }
    dataFile.print(minute, DEC);
    dataFile.print(":");
    if (second<10)
    {
      dataFile.print("0");
    }
    dataFile.print(second, DEC);
    dataFile.print(" ");
    dataFile.print(gps.f_speed_kmph());
    dataFile.println("km/h");
    dataFile.close(); // this is mandatory
    delay(10000); // record a measurement about every 10 seconds
  }
}

void loop()
{
  byte a;
  if ( shield.available() > 0 )  // if there is data coming into the serial line
  {
    a = shield.read();          // get the byte of data
    if(gps.encode(a))           // if there is valid GPS data...
    {
      getgps(gps);              // grab the data and display it on the LCD
    }
  }
}

This will append the data to a text file whose name is determine in line 34 of the sketch. If you are using a different GPS shield or a separate SD card shield you may need to change the digital pin value for the chip select line, which is found in lines 14 and 18. The data in our example is logged every ten seconds, however you can change the frequency using the delay() function in line 73.

When you’re ready to start capturing data, simply insert the card and power up the hardware. It will carry on until you turn it off, at which point the data file can be examined on a PC. As an example capture, I took the hardware for a drive, and ended with a file containing much data – for example:

For a more graphical result, you can import the data using a third-party service into Google Maps to get a better idea of the journey. But first, the text file requires a little work. Open it as a text file using a typical spreadsheet, which will then ask how to organise the columns. Delimit them with a space, for example:

Which will give you a spreadsheet of the data. Now delete all the columns except for the latitude and longitude data, and add a header row as such:

Now save that file as an .xls spreadsheet. Next, visit the GPS Visuliser website, and upload the file using the box in the centre of the page. Select “Google Maps” as the output format, and your trip will be presented – for example:

There are many options on the visualiser site, so if you end up using it a lot – consider giving them a donation.

Conclusion

Now you have some easy example sketches that demonstrate how to extract and work with data from your GPS shield. For the curious, the static GPS locations displayed in this tutorial are not our current location. And if you enjoyed this article, or want to introduce someone else to the interesting world of Arduino – check out my book (now in a third printing!) “Arduino Workshop”.

The post Tutorial – Arduino and MediaTek 3329 GPS appeared first on tronixstuff.

Introduction

During the fun and enjoyment of experimenting with electronics there will come a time when you need a nice 1 Hz oscillator to generate a square-wave signal to drive something in the circuit. On… off… on… off… for all sorts of things. Perhaps a metronome, to drive a TTL clock, blink some LEDs, or for more nefarious purposes. No matter what you need that magic 1 Hz for – there’s a variety of methods to generate it – some more expensive than others – and some more accurate than others.

A few of you may be thinking “pull out the Arduino” and yes, you could knock out a reasonable 1 Hz – however that’s fine for the bench, but wild overkill for embedding a project as a single purpose. So in this article we’ll run through three oscillator methods that can generate a 1 Hz signal (and other frequencies) using methods that vary in cost, accuracy and difficulty – and don’t rely on mains AC. That will be a topic for another day.

Using a 555 timer IC

You can solve this problem quite well for under a dollar with the 555, however the accuracy is going to heavily rely on having the correct values for the passive components. We’ll use the 555 in astable mode, and from a previous article here’s the circuit:

 And with a 5V power supply, here’s the result:

As you can see the cycle time isn’t the best, which can be attributed to the tolerance of the resistors and capacitor C1. A method to increase the accuracy would be to add small trimpots in series with the resistors (and reduce their value accordingly by the trimpot value) – then measure the output with a frequency counter (etc). whilst adjusting the trimpots. If you’re curious about not using C2, the result of doing so introduces some noise on the rising edge, for example:

So if you’ve no other option, or have the right values for the passives – the 555 can do the job. Or get yourself a 555 and experiment with it, there’s lots of fun to be had with it.

Using a GPS receiver module

A variety of GPS modules have a one pulse per second output (PPS) and this includes my well-worn EM406A module (as used in the Arduino tutorials):

With a little work you can turn that PPS output into a usable and incredibly accurate source of 1 Hz. As long as your GPS can receive a signal. In fact, this has been demonstrated in the April 2013 edition of Silicon Chip magazine, in their frequency counter timebase project. But I digress.

If you have an EM406A you most likely have the cable and if not, get one to save your sanity as the connector is quite non-standard. If you’re experimenting a breakout board will also be quite convenient, however you can make your own by just chopping off one end of the cable and soldering the required pins – for example:

You will need access to pins 6, 5, 2 and 1. Looking at the socket on the GPS module, they are numbered 6 to 1 from left to right. Pin 6 is the PPS output, 5 is GND, 2 is for 5V and 1 is GND. Both the GNDs need to be connected together.

Before moving forward you’re probably curious about the pulse, and want to see it. Good idea! However the PPS signal is incredibly quick and has an amplitude of about 2.85 V. If you put a DSO on the PPS and GND output, you can see the pulses as shown below:

 To find the length of the pulse, we had to really zoom in to a 2 uS timebase:

 Wow, that’s small. So a little external circuitry is required to convert that minuscule pulse into something more useful and friendly. We’ll increase the pulse length by using a “pulse stretcher”. To do this we make a monostable timer (“one shot”) with a 555. For around a half-second pulse we’ll use 47k0 for R1 and 10uF for C1. However this triggers on a low signal, so we first pass the PPS signal through a 74HC14 Schmitt inverter – a handy part which turns irregular signals into more sharply defined ones – and also inverts it which can then be used to trigger the monostable. Our circuit:

 and here’s the result – the PPS signal is shown with the matching “stretched” signal on the DSO:

So if you’re a stickley for accuracy, or just want something different for portable or battery-powered applications, using the GPS is a relatively simple solution.

Using a Maxim DS1307/DS3232 real-time clock IC

Those of you with a microcontroller bent may have a Maxim DS1307 or DS3232. Apart from being pretty easy to use as a real-time clock, both of them have a programmable square wave output. Connection via your MCU’s I2C bus is quite easy, for example with the DS1307:

Using a DS3232 is equally as simple. We use a pre-built module with a similar schematic. Once you have either of them connected, the code is quite simple. For the DS1307 (bus address 0x68), write 0x07 then 0x11 to the I2C bus – or for the DS3232 (bus address is also 0x68) write 0x0E then 0x00. Finally, let’s see the 1 Hz on the DSO:

Certainly not the cheapest method, however it gives you an excellent level of accuracy without the GPS.

Conclusion

By no means is this list exhaustive, however hopefully it was interesting and useful. If there’s any other methods you’d like to see demonstrated, leave a comment below and we’ll see what’s possible. And if you made it this far – check out my new book “Arduino Workshop” from No Starch Press.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitter, Google+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Various 1 Hz Oscillator Methods appeared first on tronixstuff.

Bike sharing systems like New York's Citi Bike may be taking off, but it's doubtful that many participants can find every station without checking a map. Thankfully, Adafruit has unveiled a smart helmet project that could help at least a few of those riders get to their destinations while keeping their eyes on the road. The DIY effort feeds locations to an Arduino-based Flora board and its positioning add-ons, which in turn use a string of NeoPixel LEDs on the helmet as turn indicators. Commuters just have to watch for blinking lights to know where to go next. While the system isn't easy to set up when cyclists have to manually enter coordinates, it is flexible: the open-source code lets it adapt to most any bike sharing system or headpiece. As long as you can get over looking like a Christmas tree on wheels while you navigate, you can build a smart helmet of your own using the instructions at the source link.

Filed under: GPS, Transportation, Alt

Comments

Source: Adafruit

Over the last few years I’ve been writing a few Arduino tutorials, and during this time many people have mentioned that I should write a book. And now thanks to the team from No Starch Press this recommendation has morphed into my new book – “Arduino Workshop“:

Although there are seemingly endless Arduino tutorials and articles on the Internet, Arduino Workshop offers a nicely edited and curated path for the beginner to learn from and have fun. It’s a hands-on introduction to Arduino with 65 projects – from simple LED use right through to RFID, Internet connection, working with cellular communications, and much more.

Each project is explained in detail, explaining how the hardware an Arduino code works together. The reader doesn’t need any expensive tools or workspaces, and all the parts used are available from almost any electronics retailer. Furthermore all of the projects can be finished without soldering, so it’s safe for readers of all ages.

The editing team and myself have worked hard to make the book perfect for those without any electronics or Arduino experience at all, and it makes a great gift for someone to get them started. After working through the 65 projects the reader will have gained enough knowledge and confidence to create many things – and to continue researching on their own. Or if you’ve been enjoying the results of my thousands of hours of work here at tronixstuff, you can show your appreciation by ordering a copy for yourself or as a gift

You can review the table of contents, index and download a sample chapter from the Arduino Workshop website.

Arduino Workshop is available from No Starch Press in printed or ebook (PDF, Mobi, and ePub) formats. Ebooks are also included with the printed orders so you can get started immediately.

In the meanwhile have fun and keep checking into tronixstuff.com. Why not follow things on twitter, Google+, subscribe  for email updates or RSS using the links on the right-hand column? And join our friendly Google Group – dedicated to the projects and related items on this website. Sign up – it’s free, helpful to each other –  and we can all learn something.

The post Book – “Arduino Workshop – A Hands-On Introduction with 65 Projects” appeared first on tronixstuff.
