Reading from a Text File and Sending to Arduino

The following tutorial will demonstrate how to Read values from a Text file (.txt, .csv) to blink 1 of 9 LEDs attached to an Arduino. It uses the combination of an Arduino and Processing program to process the file. The Processing program will read the text file in real time, only sending new information to the Arduino.

Components Required

Arduino UNO
Breadboard
9 LEDs
9 x 330 ohm resistors
Wires to connect the circuit
USB connection cable: to connect the computer to the Arduino
A computer: to run the processing sketch, and to compile / upload the Arduino sketch
Processing Program installed on computer
Arduino Program installed on the computer
A comma separated text file (*.txt).

Arduino Layout

The Text File

Open Notepad or equivalent text file editor, and paste the following data into it.

1,2,3,4,5,6,7,8,9,8,7,6,5,4,3,2,1

Save the file on your hard drive. In my case, I have chosen to save the file at this location.

D:/mySensorData.txt

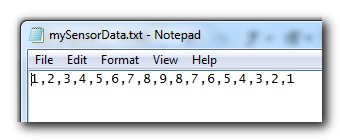

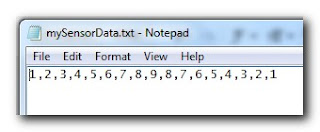

It should look like the following screenshot

Additional notes regarding the Text file:

Just remember what you call it, and where you saved it, because we will be referring to this file later on in the Processing script.
Keep all values on the same line.
Separate each number with a comma.
The number 1 will blink the first LED which is attached to Pin 2 on the Arduino.
The number 9 will blink the last LED which is attached to Pin 10 on the Arduino.

Processing Code

You can download the Processing IDE from this site.


style="color: blue;">import processing.serial.*;

style="color: blue;">import java.io.*;

style="color: rgb(43, 145, 175);">int mySwitch=0;

style="color: rgb(43, 145, 175);">int counter=0;
String [] subtext;
Serial myPort;



style="color: rgb(43, 145, 175);">void setup(){

style="color: green;">//Create a switch that will control the frequency of text file reads.

style="color: green;">//When mySwitch=1, the program is setup to read the text file.

style="color: green;">//This is turned off when mySwitch = 0
 mySwitch=1;


style="color: green;">//Open the serial port for communication with the Arduino

style="color: green;">//Make sure the COM port is correct
 myPort =
style="color: blue;">new Serial(this,
style="color: rgb(163, 21, 21);">"COM6", 9600);
 myPort.bufferUntil(
style="color: rgb(163, 21, 21);">'\n');
}


style="color: rgb(43, 145, 175);">void draw() {

style="color: blue;">if (mySwitch>0){

style="color: green;">/*The readData function can be found later in the code.

style="color: green;"> This is the call to read a CSV file on the computer hard-drive. */
 readData(
style="color: rgb(163, 21, 21);">"D:/mySensorData.txt");


style="color: green;">/*The following switch prevents continuous reading of the text file, until

style="color: green;"> we are ready to read the file again. */
 mySwitch=0;
 }

style="color: green;">/*Only send new data. This IF statement will allow new data to be sent to

style="color: green;"> the arduino. */

style="color: blue;">if(counter<subtext.length){

style="color: green;">/* Write the next number to the Serial port and send it to the Arduino

style="color: green;"> There will be a delay of half a second before the command is

style="color: green;"> sent to turn the LED off : myPort.write('0'); */
 myPort.write(subtext[counter]);
 delay(500);
 myPort.write(
style="color: rgb(163, 21, 21);">'0');
 delay(100);

style="color: green;">//Increment the counter so that the next number is sent to the arduino.
 counter++;
 }
style="color: blue;">else{
 //If the text file has run out of numbers, then read the text file again in 5 seconds.
 delay(5000);
 mySwitch=1;
 }
}



style="color: green;">/* The following function will read from a CSV or TXT file */

style="color: rgb(43, 145, 175);">void readData(String myFileName){

 File file=
style="color: blue;">new File(myFileName);
 BufferedReader br=
style="color: blue;">null;

 try{
 br=
style="color: blue;">new BufferedReader(
style="color: blue;">new FileReader(file));
 String text=
style="color: blue;">null;


style="color: green;">/* keep reading each line until you get to the end of the file */

style="color: blue;">while((text=br.readLine())!=
style="color: blue;">null){
 /* Spilt each line up into bits and pieces using a comma as a separator */
 subtext = splitTokens(text,
style="color: rgb(163, 21, 21);">",");
 }
 }
style="color: blue;">catch(FileNotFoundException e){
 e.printStackTrace();
 }
style="color: blue;">catch(IOException e){
 e.printStackTrace();
 }
style="color: blue;">finally{
 try {

style="color: blue;">if (br != null){
 br.close();
 }
 }
style="color: blue;">catch (IOException e) {
 e.printStackTrace();
 }
 }
}

I used this site to highlight and format my code.

Once you have copied the text above into the Processing IDE, you can now start working on the Arduino code as seen below.

Arduino Code

You can download the Arduino IDE from this site.

Copy and paste the following code into the Arduino IDE.


style="color: green;">/* This program was created by ScottC on 8/5/2012 to receive serial

style="color: green;">signals from a computer to turn on/off 1-9 LEDs */


style="color: rgb(43, 145, 175);">void setup() {

style="color: green;">// initialize the digital pins as an output.
 pinMode(2, OUTPUT);
 pinMode(3, OUTPUT);
 pinMode(4, OUTPUT);
 pinMode(5, OUTPUT);
 pinMode(6, OUTPUT);
 pinMode(7, OUTPUT);
 pinMode(8, OUTPUT);
 pinMode(9, OUTPUT);
 pinMode(10, OUTPUT);

style="color: green;">// Turn the Serial Protocol ON
 Serial.begin(9600);
}


style="color: rgb(43, 145, 175);">void loop() {

style="color: rgb(43, 145, 175);">byte byteRead;


style="color: green;">/* check if data has been sent from the computer: */

style="color: blue;">if (Serial.available()) {


style="color: green;">/* read the most recent byte */
 byteRead = Serial.read();

style="color: green;">//You have to subtract '0' from the read Byte to convert from text to a number.
 byteRead=byteRead-
style="color: rgb(163, 21, 21);">'0';


style="color: green;">//Turn off all LEDs if the byte Read = 0

style="color: blue;">if(byteRead==0){

style="color: green;">//Turn off all LEDS
 digitalWrite(2, LOW);
 digitalWrite(3, LOW);
 digitalWrite(4, LOW);
 digitalWrite(5, LOW);
 digitalWrite(6, LOW);
 digitalWrite(7, LOW);
 digitalWrite(8, LOW);
 digitalWrite(9, LOW);
 digitalWrite(10, LOW);
 }


style="color: green;">//Turn LED ON depending on the byte Read.

style="color: blue;">if(byteRead>0){
 digitalWrite((byteRead+1), HIGH);
style="color: green;">// set the LED on
 }
 }
 }

Additional Information:

The Arduino code will still work without the processing program. You can open the serial monitor window to send the commands to the Arduino manually. In fact, if you encounter any problems, I would suggest you do this. It will help to identify the root cause of the problem (ie Processing or Arduino Code, or physical connections).
If you choose to use the Serial Monitor feature of the Arduino IDE, you cannot use the Processing program at the same time.

Once you have assembled the Arduino with all the wires, LEDs, resistors etc, you should now be ready to put it all together and get this baby cranking!

Connecting it all together

Connect the USB cable from your computer to the Arduino, and upload the code.
Keep the USB cable connected between the Arduino and the computer, as this will become the physical connection needed by the Processing Program
Make sure that you have the text file in the correct location on your hard drive, and that it only contains numbers relevant to the code provided (separated by commas).
Run the Processing program and watch the LEDs blink in the sequence described by the text file.
You can add more numbers to the end of the line, however, the processing program will not be aware of them until you save the file. The text file does not have to be closed.

Other programs can be used to create text file, but you will need the processing program to read the file and send the values to the Arduino. The Arduino will receive each value and react appropriately.

SIMILAR PROJECT: Use a mouse to control the LEDs on your Arduino - see this post.

An alternative Processing Sketch

This Processing sketch uses the loadStrings()method instead of the FileReader method used in the first sketch. This sketch also provides better control over sending the values to the Arduino. When the sketch first loads, the application window will be red. By clicking your mouse inside the window, the background will turn green and the file will be imported and sent to the Arduino, with every value being sent at half second intervals. If you update the text file and save, only new values will be transmitted, however, if you want the entire file to transmit again, you can press the window once (to reset the counter), and then again to read the file and send the values again from the beginning of the file.
I personally like this updated version better than the first, plus I was inspired to update this blog posting due to the fact that some people were having problems with the FileReader method in the first sketch. But both sketches should work (they worked for me).


style="color: rgb(0, 128, 0);">/* TextFile Sender: Written by Scott C on 5th April 2013

style="color: rgb(0, 128, 0);"> using Processing Version 2.0b8 */

import processing.serial.*;

Serial comPort;

style="color: rgb(43, 145, 175);">int counter=0;
style="color: rgb(0, 128, 0);">// Helps to keep track of values sent.

style="color: rgb(43, 145, 175);">int numItems=0;
style="color: rgb(0, 128, 0);">//Keep track of the number of values in text file
boolean sendStrings=
style="color: rgb(0, 0, 255);">false;
style="color: rgb(0, 128, 0);">//Turns sending on and off
StringLoader sLoader;
style="color: rgb(0, 128, 0);">//Used to send values to Arduino


style="color: rgb(43, 145, 175);">void setup(){
 comPort =
style="color: rgb(0, 0, 255);">new Serial(
style="color: rgb(0, 0, 255);">this, Serial.list()[0], 9600);
 background(255,0,0);
style="color: rgb(0, 128, 0);">//Start with a Red background
}


style="color: rgb(43, 145, 175);">void draw(){
}



style="color: rgb(43, 145, 175);">void mousePressed() {

style="color: rgb(0, 128, 0);">//Toggle between sending values and not sending values
 sendStrings=!sendStrings;


style="color: rgb(0, 128, 0);">//If sendStrings is True - then send values to Arduino

style="color: rgb(0, 0, 255);">if(sendStrings){
 background(0,255,0);
style="color: rgb(0, 128, 0);">//Change the background to green


style="color: rgb(0, 128, 0);">/*When the background is green, transmit

style="color: rgb(0, 128, 0);"> text file values to the Arduino */
 sLoader=
style="color: rgb(0, 0, 255);">new StringLoader();
 sLoader.start();
 }
style="color: rgb(0, 0, 255);">else{
 background(255,0,0);
style="color: rgb(0, 128, 0);">//Change background to red

style="color: rgb(0, 128, 0);">//Reset the counter
 counter=0;
 }
}




style="color: rgb(0, 128, 0);">/*============================================================*/

style="color: rgb(0, 128, 0);">/* The StringLoader class imports data from a text file

style="color: rgb(0, 128, 0);"> on a new Thread and sends each value once every half second */

style="color: rgb(0, 0, 255);">public
style="color: rgb(0, 0, 255);">class
style="color: rgb(43, 145, 175);">StringLoader extends Thread{


style="color: rgb(0, 0, 255);">public StringLoader(){

style="color: rgb(0, 128, 0);">//default constructor
 }


style="color: rgb(0, 0, 255);">public
style="color: rgb(43, 145, 175);">void run() {
 String textFileLines[]=loadStrings(
style="color: rgb(163, 21, 21);">"d:/mySensorData.txt");
 String lineItems[]=splitTokens(textFileLines[0],
style="color: rgb(163, 21, 21);">",");
 numItems=lineItems.length;

style="color: rgb(0, 0, 255);">for(
style="color: rgb(43, 145, 175);">int i = counter; i<numItems; i++){
 comPort.write(lineItems[i]);
 delay(500);
 comPort.write(
style="color: rgb(163, 21, 21);">"0");
 }
 counter=numItems;
 }
}

ScottC 09 May 14:09
